Pipe Profiling Sonar - 1512 USB
The Model 1512 Pipe Profiling Sonar provides an acoustic method for profiling the interiors of liquid filledpipes or boreholes. This method does not require draining of the pipes as with camera surveys and provides accurate quantified data which can not be obtained from a camera display alone.

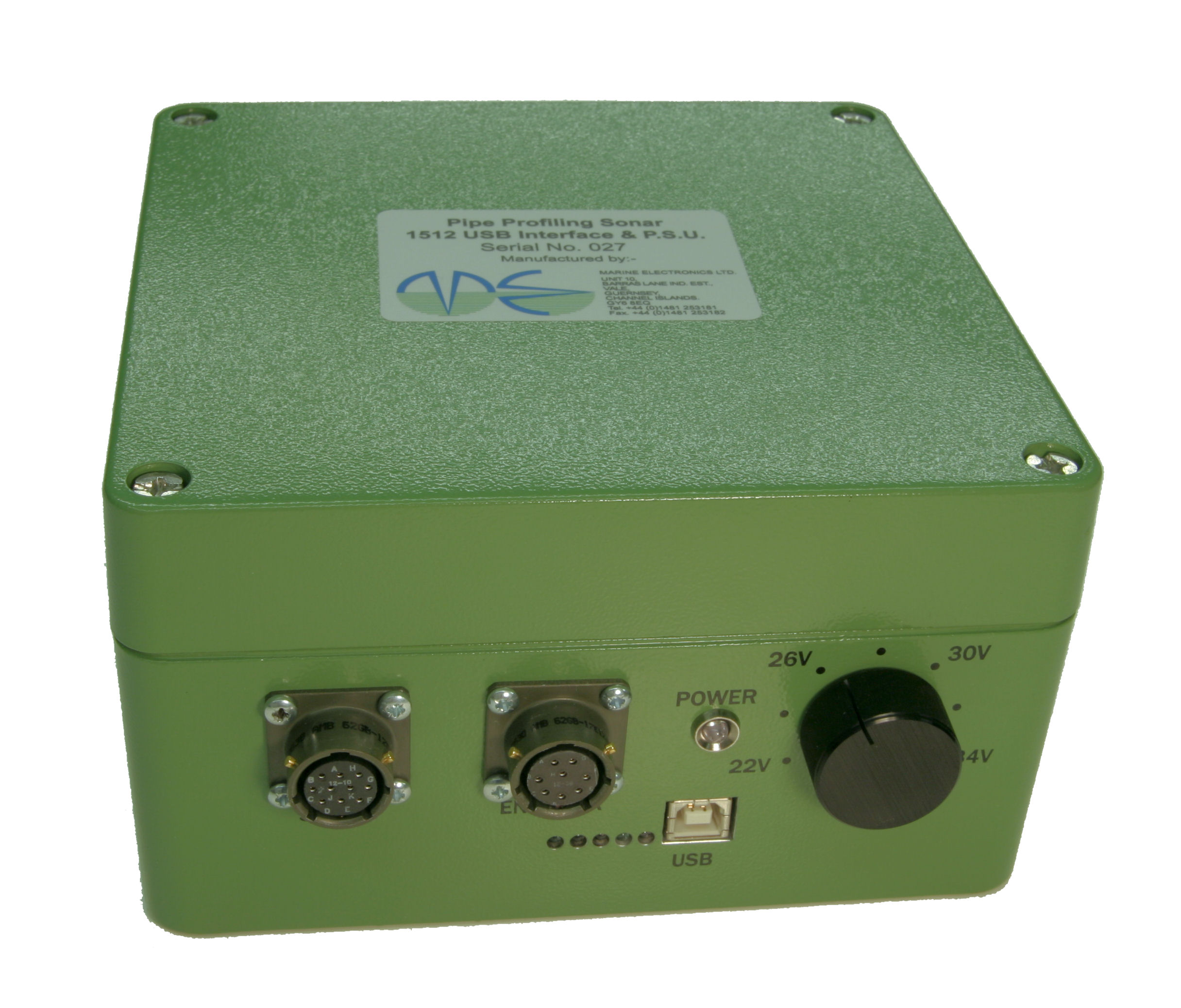

The equipment comprises of an underwater Scanning Unit (which may be skid, float, tractor or ROV mounted) and a compact USB interface Unit. To complete the system a "Windows" P.C. with a USB port is required to run the 1512 system software.
The Scanning Unit is a rugged stainless steelcylinder with a pressure balanced PVC transducer housing at one end, and the umbilical cable connecter at the other. The standard Scanning Unit is rated at 1000m operational depth. Two lead-acid batteries could be used to power the Scanning Unit together with a notebook P.C. for a completely portable solution. Internal Pitch and Roll sensors display in analogue and digital form the orientation of the sonar in the pipe.
The USB Interface Unit connects to either a USB1.1 or USB2.0 port on a host P.C. running under the "Windows" operating system. (Win'98 upwards issupported). The USB Interface has inputs for a cable payout encoder so that the distance travelled may be displayed to 0.1m resolution allowing accurate determination of where flaws exist in the pipe relative to the deployment position. The USB Interface is self-powered from the P.C.
Features Include
- Real Time continuous scanning over a full 360 degrees in 1 sec
- "Windows" user-friendly software with USB hardware minimises training time
- Direct capture to Hard Disk for high resolution image save and restore
- Dual tracking cursor for accurate on-screen measurements
- Internal Pitch and Roll sensors
- Quadrature and compatible cable counter interfaces
- Built in 500m cable drive as standard, fibre-optic system optional
- Automatic profile detection and output in ASCII format for import into third party 3D modelling software
DOWNLOAD A DEMO.......Pipeview software and sample images are available using the links below.
Notes on installation: Simply click the links above and when prompted select "Save as" and choose a directory to save the file on your hard drive (Approx. 1MB). Unzip the Pipeview_v3_07_00.zip file before running the SETUP executable and follow the on-screen prompts to install the software.
The sample data files must also be unzipped to a location on your hard drive. Included in the data file folder are text documents for each image describing the situation and what you are viewing on screen.
|
